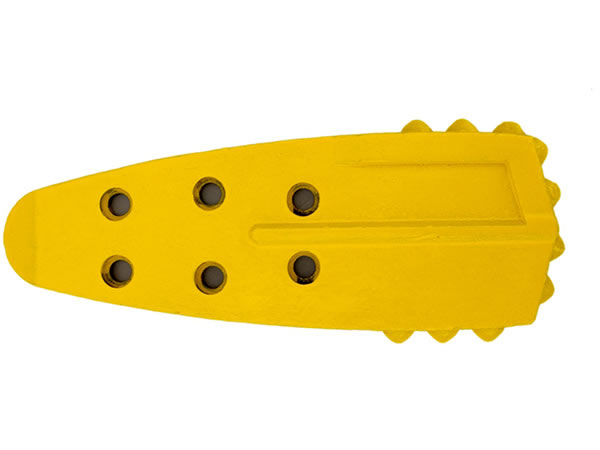

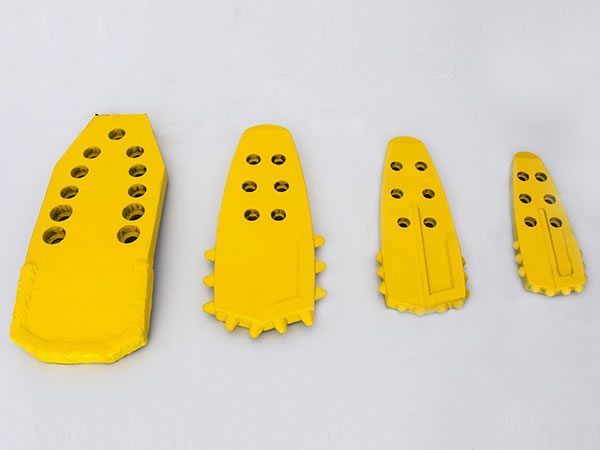

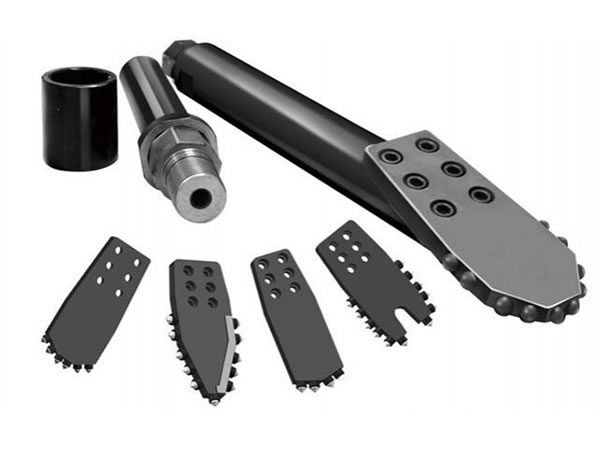

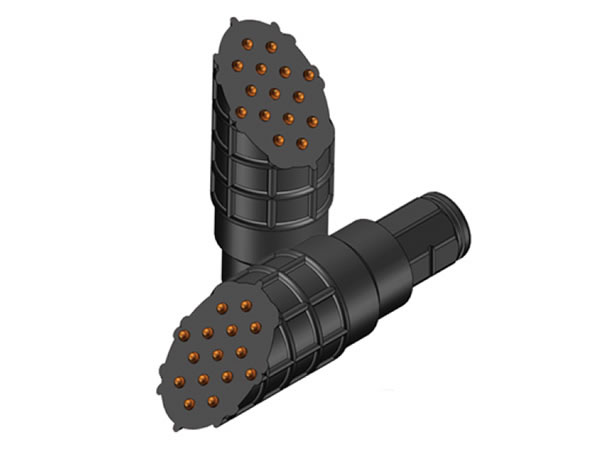

Directional Drilling Blades

  • Directional Drilling Blades
  • Directional Drilling Blades
  • Directional Drilling Blades
Features

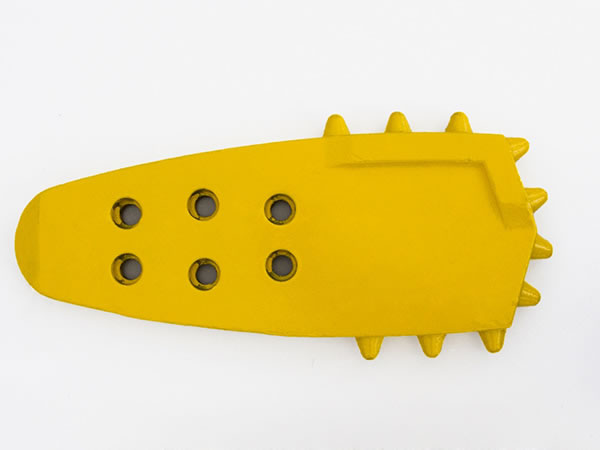

1. HDD paddle bit is casted from high strength wear resistant material in Caston
2. A wear resistant region is set to extend the blade's life and improve the working efficiency
3. Hexagon bolts are adopted in the paddle surface for fastening

Applications

a. Users can choose HDD paddle bit with appropriate strength and shape according to different construction conditions
b. No-magnetic transition rod or drilling blades are optional for some special construction

Technical Parameters

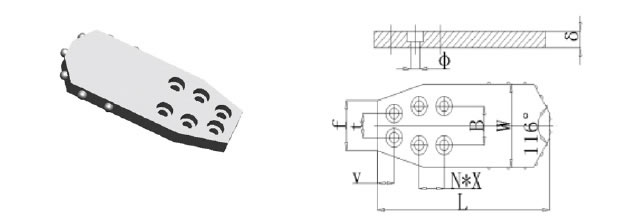

Technical Parameters
Model L W δ f B t N*X V φ Kg
KTDB73B 270 140 22 75 48 48 45*2 25 13 8.2
KTDB89B 320 160 25 90 64 53 45*3 25 13 11
KTDB114B 345 175 30 110 75 75 45*3 25 15 13
KTDB127B 440 220 35 120 110 84 50*4 25 21 18

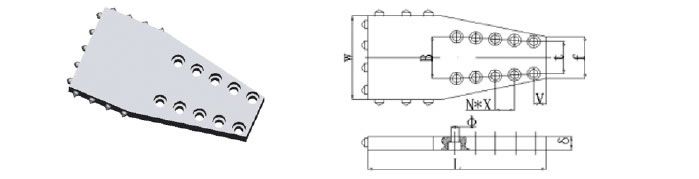

Technical Parameters
Model L W δ f B t N*X V φ Kg
KTDB60A 240 100 20 60 47 29 35*2 23 13 3.5
KTDB73A 270 140 22 75 48 48 45*2 25 13 7.8
KTDB89A 320 160 25 90 64 53 45*3 25 13 9
KTDB114A 345 175 30 110 75 75 45*3 25 15 12
KTDB127A 440 220 35 120 110 84 50*4 25 21 16

Among the directional drilling tools, we offer directional drilling blades and other drill rig accessories, including oil drilling tools, geothermal drilling tools, exploration drilling tools, mine drilling tools, deep well drilling tools, etc. Fully equipped with drill pipe production lines and other process equipment, as each detail is checked during manufacturing, we can provide quality directional drilling blades and other drilling tools for global customers.
