Parameters for horizontal drill rig with the capacity lower than 25t

Model	D	L	N	W	f	H	φ	d	API	Kg
KTK60L	200	250	350	100	48	30	32	70	60/1"5	32
KTK60L	250	280	370	100	48	30	32	70	60/1"5	43
KTK60L	300	330	380	100	48	30	32	70	60/1"5	67
KTK60L	400	420	400	100	48	30	32	70	60/1"5	120
KTK60L	500	520	400	100	48	30	32	70	60/1"5	150
KTK60L	600	620	400	100	48	30	32	70	60/1"5	192
KTK60L	700	710	400	100	48	30	32	70	60/1"5	260
KTK60L	800	810	400	100	48	30	32	70	60/1"5	320

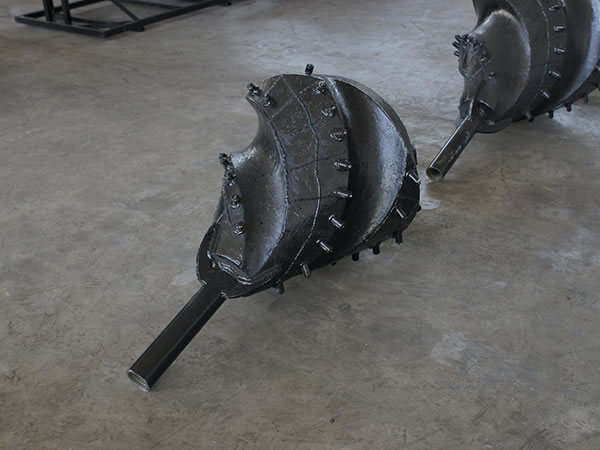

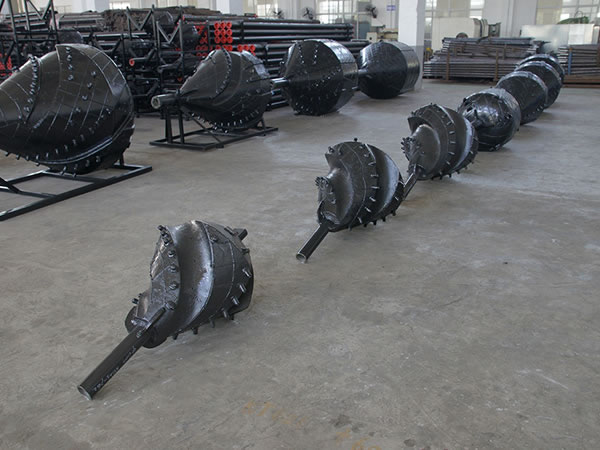

For more details about fluted reamer please refer to:

DT SERIES

Among the directional drilling tools, we offer fluted reamer, hole opener and other drill rig accessories, including oil drilling tools, exploration drilling tools, mine drilling tools, geothermal drilling tools, deep well drilling tools, etc. Fully equipped with drill pipe production lines and other process equipment, as each detail is checked during manufacturing, we can provide quality hole opener and other drilling tools for global customers.
