Pipe Puller
Pin Pulling Eyes, Box Pulling Eyes
The pin and box pulling eyes in Caston are made from heat-treated steel bars. The thread surface is given nitriding or laser treatment to enhance the hardness. Users can choose the specific specification of HDD pulling eye according to the load and thread.

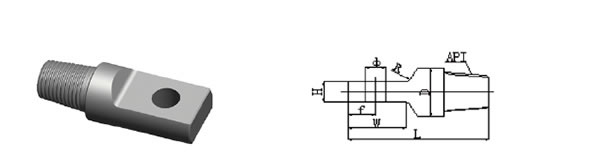

Parameters of Pin Pulling Eyes
Specification |
D |
L |
W |
f |
H |
φ |
API |
Kg |
DT60BT-01 |
75 |
200 |
100 |
40 |
30 |
32 |
60/1"5 |
3.5 |
DT73BT-01 |
82 |
230 |
115 |
55 |
40 |
42 |
NC23 |
5.2 |
DT73BT-03 |
90 |
250 |
115 |
55 |
40 |
42 |
NC26 |
7.8 |
DT89BT-01 |
105 |
270 |
115 |
55 |
45 |
42 |
NC31 |
9 |
DT102BT-01 |
120 |
280 |
115 |
55 |
45 |
42 |
NC31 |
12 |
DT114BT-01 |
127 |
280 |
115 |
56 |
45 |
46 |
NC38 |
15 |
DT127BT-01 |
165 |
450 |
200 |
107 |
70 |
76 |
NC50 |
58 |
DT140BT-01 |
190 |
480 |
215 |
115 |
100 |
96 |
51/2FH |
70 |

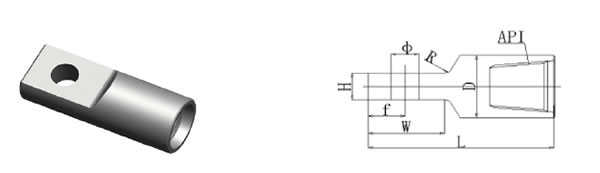

Parameters of Box Pulling Eyes
Model |
D |
L |
W |
f |
H |
φ |
API |
|
DT60BT-02 |
75 |
200 |
100 |
40 |
30 |
32 |
60/1"5 |
4 |
DT73BT-02 |
82 |
230 |
115 |
55 |
40 |
42 |
NC23 |
5.5 |
DT73BT-04 |
90 |
250 |
115 |
55 |
40 |
42 |
NC26 |
6.8 |
DT89BT-02 |
105 |
270 |
115 |
55 |
45 |
42 |
NC31 |
9 |
DT102BT-01 |
120 |
280 |
115 |
55 |
45 |
42 |
NC31 |
10.5 |
DT114BT-02 |
127 |
280 |
115 |
56 |
45 |
46 |
NC38 |
12 |
DT127BT-02 |
165 |
450 |
200 |
107 |
70 |
76 |
NC50 |
52 |
DT140BT-02 |
190 |
480 |
215 |
115 |
100 |
96 |
51/2FH |
66 |

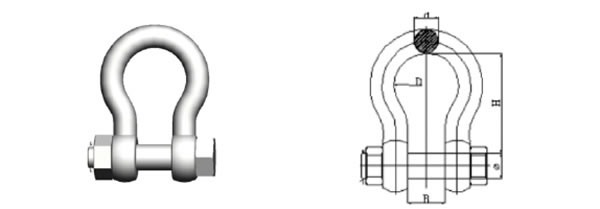

Parameters of High-Strength D-Shaped Shackle
Model |
Allowable load (T) |
Main parameters (mm) |
kg |
d |
φ |
B |
D |
H |
|
DTXK2-1/4 |
45 |
58 |
65 |
95 |
160 |
235 |
32 |
DTXT2-1/2 |
55 |
64 |
70 |
105 |
185 |
268 |
45 |
DTXK2-3/4 |
60 |
70 |
78 |
110 |
200 |
290 |
60 |
DTXK3---- |
85 |
76 |
82 |
120 |
230 |
340 |
75 |
DTVK3-1/4 |
100 |
86 |
92 |
130 |
235 |
360 |
100 |
DTXK3-1/2 |
120 |
90 |
95 |
154 |
240 |
370 |
120 |
DTXK4---- |
150 |
102 |
108 |
160 |
255 |
380 |
160 |
DTXK4-1/4 |
175 |
108 |
120 |
170 |
265 |
380 |
190 |
DTXK4-3/4 |
200 |
120 |
130 |
185 |
280 |
395 |
300 |
DTXK5---- |
250 |
127 |
140 |
210 |
330 |
470 |
350 |
DTXK6---- |
300 |
152 |
170 |
220 |
350 |
520 |
500 |
DTXK7---- |
400 |
178 |
190 |
230 |
365 |
575 |
700 |
Among the directional drilling tools, we offer pipe puller and other drill rig accessories, including exploration drilling tools, mine drilling tools, oil drilling tools, geothermal drilling tools, deep well drilling tools, etc. Fully equipped with drill pipe production lines and other process equipment, as each detail is checked during manufacturing, we can provide quality pipe puller and other drilling tools for global customers.
